Discussion Starter · #1 · (Edited)
hi all,

In this hill stream paludarium thread I mentioned that I find the concept good, but the execution can be taken further (especially larger!), to create more different pieces of stream, enabling the keeping of more ´normal´ fish species like tetras. I also want to create walls that are less vertical and more like a slope (at least at some places).

At the same time my wife and I discussed the fact that we could do with some more space in the living room, where this paludarium is situated. And as another room in the house became available (due to change of work), the decision was made to replace the two existing tanks with a large one in a dedicated room.

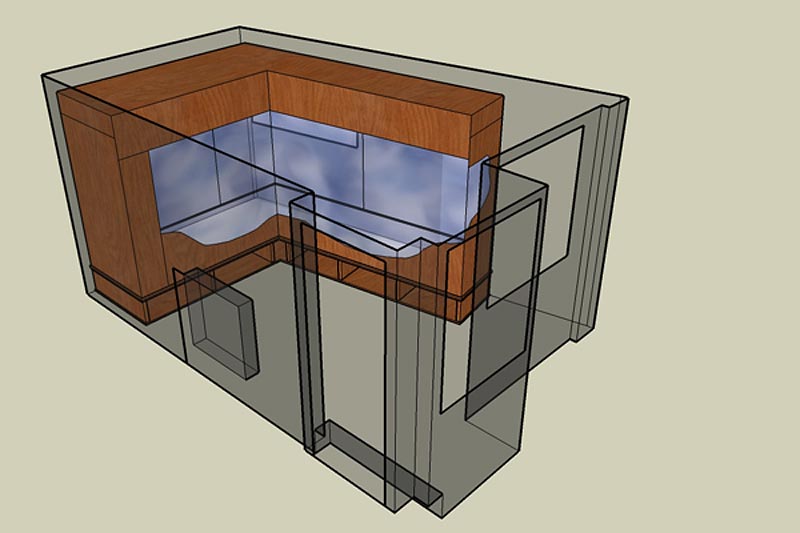

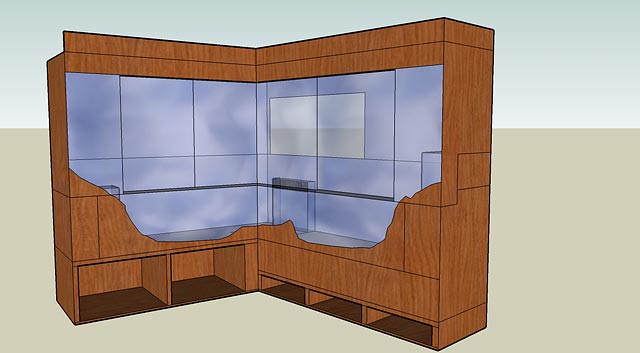

Here is a Sketchup picture of the room with the new viv.


Dimensions of the viv will be 215cm at the left end, 280cm at the other side and an inner height of 135cm. The depth is 95cm at the left side and 70cm at the

right side. The two ´legs´ are positioned at a bit more than a 100 degrees towards each other.


To get a better idea what I wanted I did a lot of sketching, like this one:

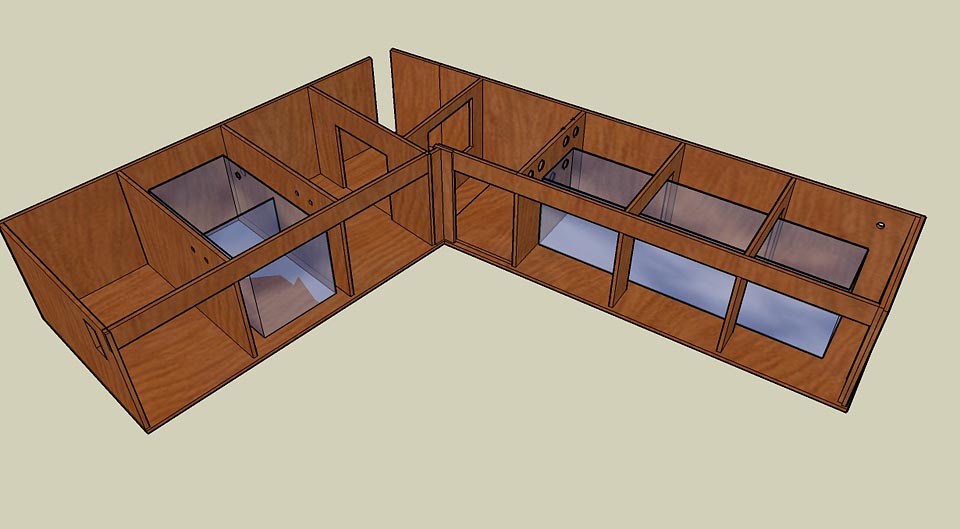

In the final design the room under the tank is used and covered by some sheets of plywood.

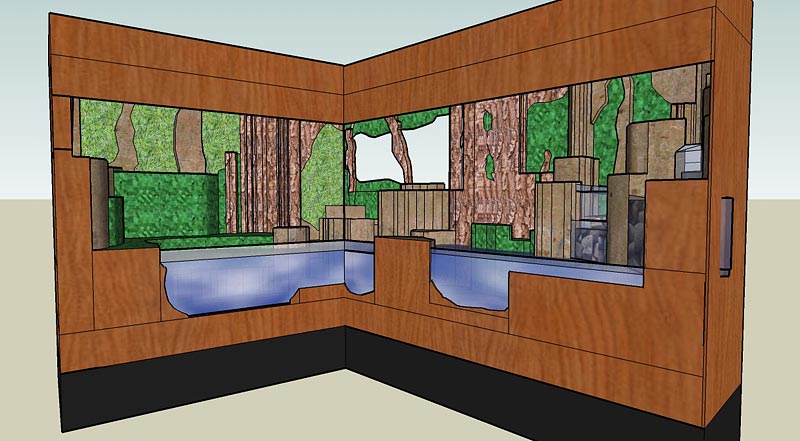

Artist´s impression of the tank; I use the back window to create some depth (the window faces North, so the light will be rather diffuse)



Beneath the actual tank there is room for making RO water (to be mixed with a bit of tap water), automatic water refreshing and a large (160x50x50cm) tank in which four large pond pumps will be placed, that are essential for making a hill stream tank.




--------------------------------------------------------------------------

September last year I started the constructional work (which I plan to end at about June this year). The material used is a good 18mm plywood, which will be

covered with epoxy and glassfiber mats.

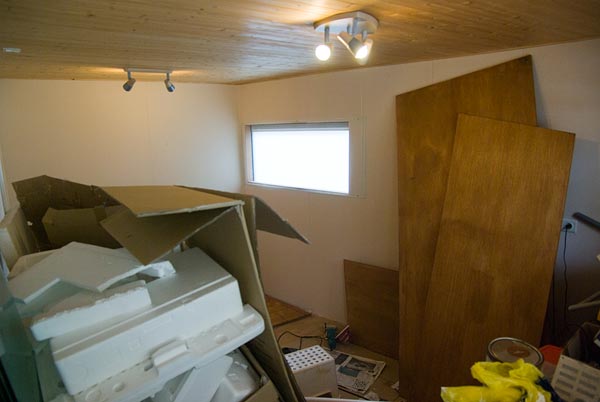

The best start of course is to have an empty room...



(Before this I painted the wall with some moisture resistant coating.)

I glue the plywood pieces with Poly-urethane glue (don´t know the English equivalent) - even if I wanted, there would have been no space to work with screws.

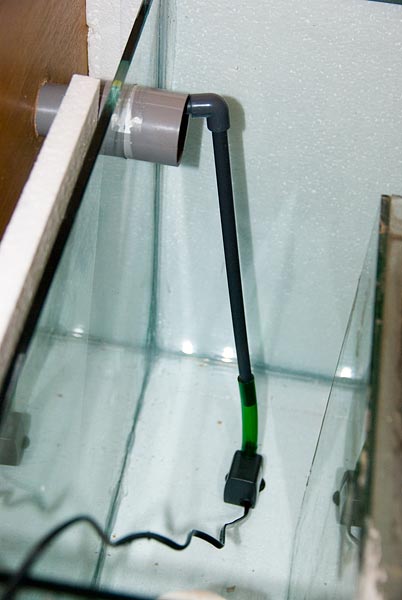

Part of the automatic refreshing system: a small pump, pumping water to the drain regularely, which will be replaced by a 3:1 RO - tap water mix from the

reservoirs.

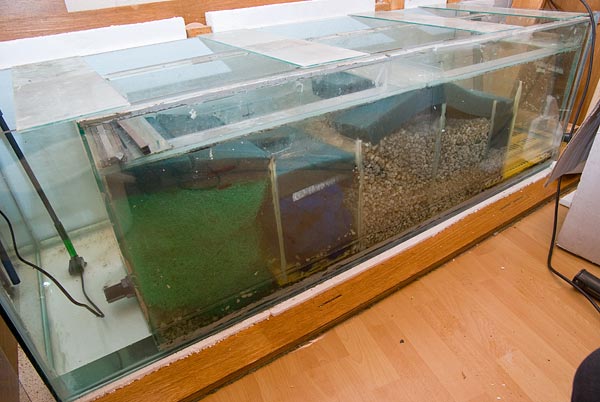

The tank through which the water will flow back to the large pumps. There is a biological filter inside, like used for large fish tanks.



Where the water will flow back to the pumps:

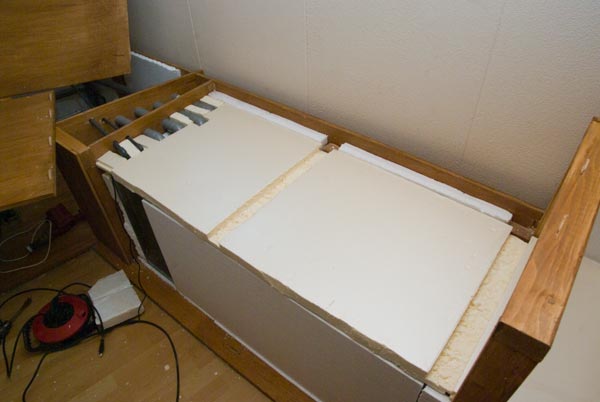

Packed in foam, to avoid loss of warmth (by the way, the pumps will act as heaters):

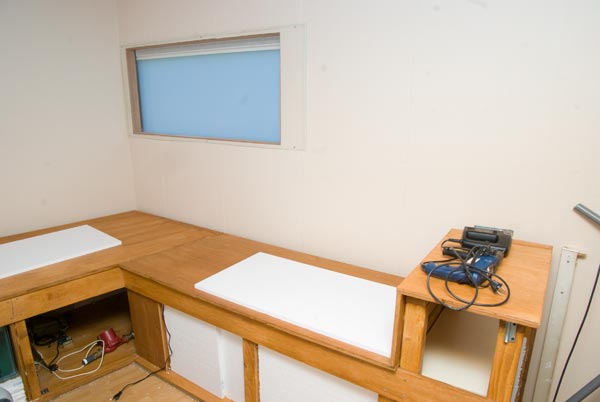

The right part is higher as part of the ´hill´ and to enable access to the pumps in the tank:


--------------------------------------------------------------------------

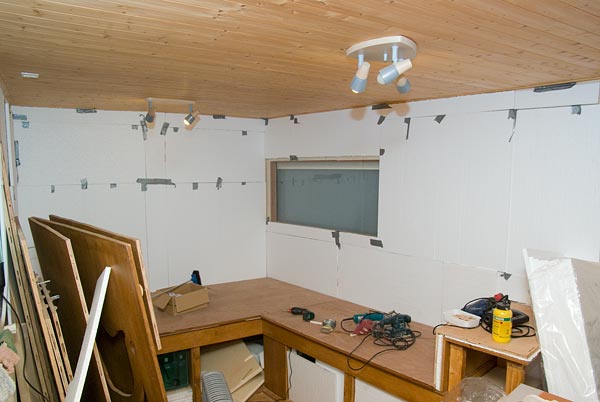

The walls behind the tank are covered with styropar sheets for insulation:

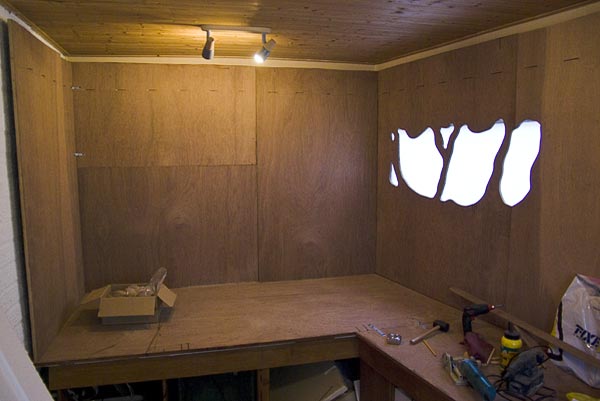

The standing plywood back:

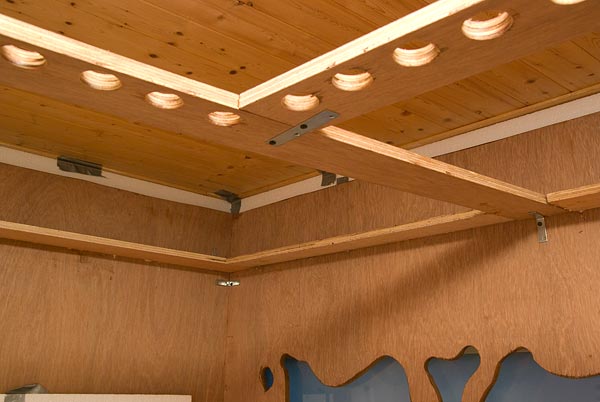

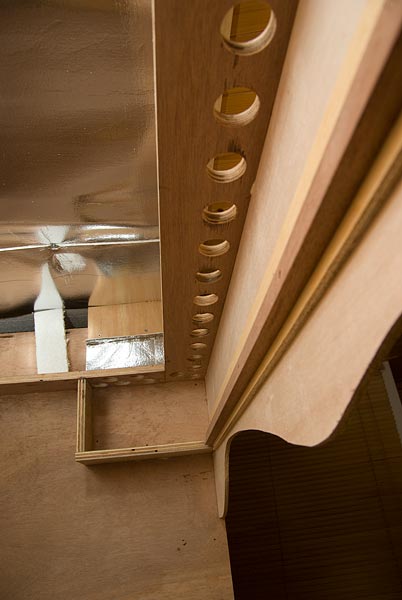

Dividing the part for the lights and ventilators (the holes are 40mm in diameter and will be covered with wire mesh)




A lot of holes for the pipes (here the ones that will bring the water back from the pumps into the tank):



I sawed the pieces of plywood behind which the glass windows will be placed (45cm high and then sliding ones on top).

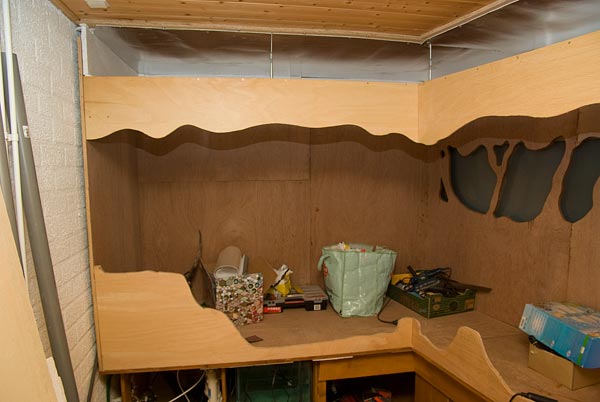

Inside, below the lights (the boxes at the end are to place some ventilators for circulation inside the tank):

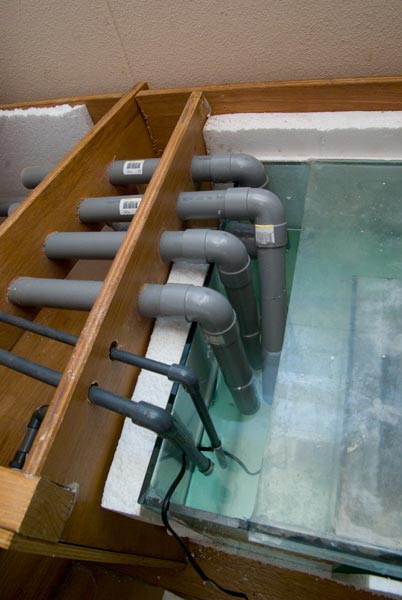

Between the pumps and the tank I place some taps to regulate the amount of water flowing through each pipe. In the picture they stand above the floor, but once glued they will hang under the tank. Pipes are 40mm in diameter. The total pump capacity is 19000 liters an hour (5000 US gallons), although some is lost because of the height to which the water is pumped.

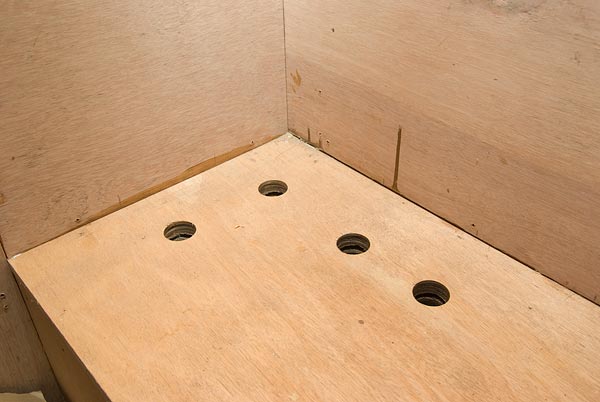

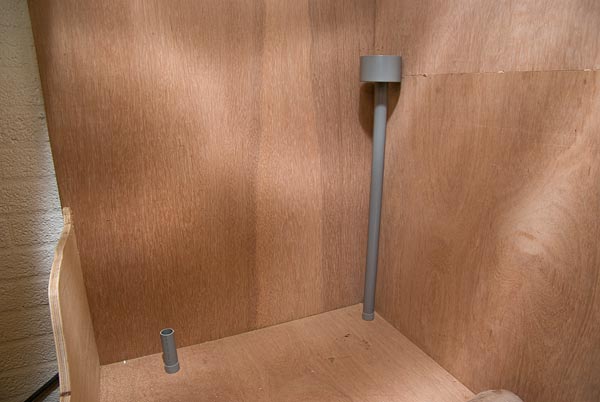

At these points in the rear end of the tank, the water will flow back to the reservoir under the tank:



In the left side there is another pump under the tank for a waterfall at that side:






I hope the pictures help you to understand what I am doing - I feel my technical English is lacking a bit...

Questions, suggestions and criticism is very much appreciated. Some way this is quite an adventure as there are so few examples of this type of tank building (I fortunate enough to get the help of the man behind this tank, Hans Pietersma).
Any input is welcome!


·
Registered
Joined
·
509 Posts
i hope you understand i mean this in the nicest way possible... i hate you. Im really just joking this is such a very cool project and am very jealous of both the room you have for such an amazing tank and for your amazing artistic skills shown already in previous post. I have subscribed to this thread adn will be following this till the end!


·
Registered
Joined
·
326 Posts
Discussion Starter · #9 ·
i hope you understand i mean this in the nicest way possible... i hate you. Im really just joking this is such a very cool project and am very jealous of both the room you have for such an amazing tank and for your amazing artistic skills shown already in previous post. I have subscribed to this thread adn will be following this till the end!
I love being hated this way :cool:
The room I have is a real blessing, OTOH this one will replace the two existing ones.

There is still a lot of work to do, so enough stuff to follow if you allow me some time :eek:


·
Registered
Joined
·
509 Posts
I love being hated this way :cool:
The room I have is a real blessing, OTOH this one will replace the two existing ones.

There is still a lot of work to do, so enough stuff to follow if you allow me some time :eek:
I shall give you some time :D How does a week sound?:) Again i appreciate your threads, the detail, time and artistic skills spent on your projects shows. When you are finished i have a spare tank that needs to get finished its not as big as your room but its (if my formula is correct its been a while converting inchs to centimeters) 182cm long by 61cm wide and 76cm tall. i hope i did that right... anyone any better at math then me? 1inch = about 2.5cm? Now i feel dumb


·
Registered
Joined
·
587 Posts
What are you doing online? Get back to working on this already! I can't wait to see it finished. So do you have any ideas for inhabitants yet?


·
Registered
Joined
·
326 Posts
Discussion Starter · #13 ·
Thank you for the week, I am afraid I need just a little bit more :rolleyes:

An inch is 2.54cm (at least in the UK). So your tank would be 72" x 24" x 30"?


As for the inhabitants, I just think about moving the frogs, gekkos and fishes from my exisiting tanks and see how they do. Probably some more fishes and some new generations of Mannophryne would be nice...


·
Premium Member
Joined
·
235 Posts
That is one of the most impressive undertakings I have seen. I am completely impressed by what you have acomplished. Great job. I, like others, can't wait to see the finish results.


·
Registered
Joined
·
509 Posts
Thank you for the week, I am afraid I need just a little bit more :rolleyes:

An inch is 2.54cm (at least in the UK). So your tank would be 72" x 24" x 30"?


As for the inhabitants, I just think about moving the frogs, gekkos and fishes from my exisiting tanks and see how they do. Probably some more fishes and some new generations of Mannophryne would be nice...
Ok Ok a week and a half will work for me :D

Perfect on with the size, but i have it started and after looking at your builds im ready to rip out everything ive done! Wish i could figure out what to put in there.

Again beautiful and cant wait for the updates!!!!


·
Registered
Joined
·
490 Posts
Amazing start and thanks for the pictures. Where are you located?


·
Registered
Joined
·
326 Posts
Discussion Starter · #20 ·
I plan to get the epoxy stuff this week, so I could do only a few minor things.

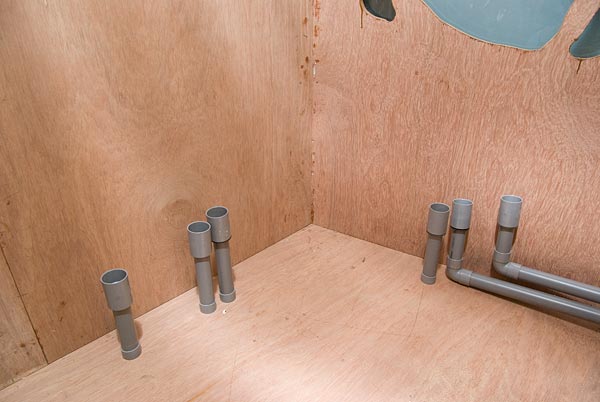

First I installed the tubes for the water that flows back to the reservoir. I haven´t glued them yet, as I first want to do the epoxy.


I placed the acryl glass window; of course the frame will be hidden in the background once made.


Cleaned the tank a bit:


A proud family in their new home...


Or better this way?


I also played around with the division of land and water. Just some pieces of foam to get a rough idea.




As seen from the entrance door of the room:


Please feel free to comment, ask for explanation or whatever!
