Default hill stream paludarium

hi all,

Today I introduced myself in this thread. To avoid cluttering the thread, I show my second paludarium here.

I have always had a fascination for running water and hill streams - probably because we haven┤t any of those in the Netherlands. Our numerous trips to Scotland and other parts of Europe provide plenty of inspiration though.

Reading some pages on keeping hill stream loaches in fish tanks and about the ways strong water flows are made, I decided in spring 2008 to design a hill stream paludarium.

At the core of the idea is the creation of different water levels, divided by some large stones that would act as small dams. To get the water back to the pond pumps I put under the stream,I created a double floor. I hope the drawings make this more clear.

The size of the tank is 150cm long, 75cm broad and 120 to 160cm overall height (including the water in the belly of the tank). (That is 60x30x50 to 64 inches for the metrically impaired).






Reply With Quote
Sponsored Links
Advertisement

  #2 (permalink)
Old 01-24-2010, 02:35 PM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

I ordered the glas (10mm and 6mm for the top) and glued the lower part of the tank, creating the double floor with some extra sheets of glass:



With the pond pumps in place:




Marco, a friend of mine, and I then glued foam and together with some rocks tried to get a nice flow.









Some painting:

Kaytality likes this.
Reply With Quote
  #3 (permalink)
Old 01-24-2010, 02:38 PM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

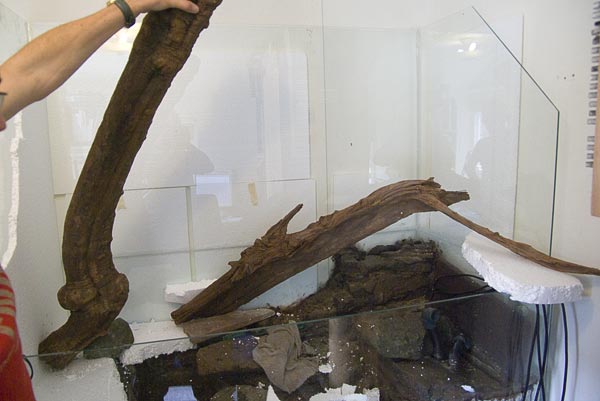

Then the upper glas part was glued. Where to put the wood?


A dripping wall in the making:









Adding fern root and rainforest background (which proved to need more moist to keep it well, then provided in some parts)








first test:



detail:
Kaytality likes this.
Reply With Quote

  #4 (permalink)
Old 01-24-2010, 02:41 PM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

First plants, mainly taken from my other tank.





Asplenium vivipara:


Cryptocoryne wendtii:


Detail of waterfall (now nearly invisible because of the plant growth)



Wide shot:





Cryptocoryne balansae
Kaytality likes this.
Reply With Quote
  #5 (permalink)
Old 01-24-2010, 02:42 PM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

Some fish. This was quite tricky, as I knew no one who had experience with such a set up. As it turned out, the Gastromyzons thrive, as do the Shrimps (Atyopsis moluccensis). The Rasboras and Eutropellius loved the current for some time, but in the end there are too few calmer places.







Reply With Quote
  #6 (permalink)
Old 01-24-2010, 02:42 PM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

A local breeder adviced on Mannophryne trinitatis (3.3) as an ideal frog for this set-up. I added H. azureiventris, which I wouldn┤t do anymore. Lovely frogs and there is enough space for them, but they show themselves seldom. Mixing species in a tank is less of an issue overhere, but simplicity is often best.
On the other hand, I love the Hyperolius fusciventris I have (cb too). My Lygodactylus picturatus, who enjoy large areas of dry and warm conditions as well as UV light do really well. I have within a year at least 5 juveniles, but probably more (they hide in the ferns near the dripping wall).
























Recent wide shots:



Reply With Quote
  #7 (permalink)
Old 01-24-2010, 03:01 PM
HunterB's Avatar
Member

Join Date: Apr 2009
Location: Mohrsville, PA (1 and a half hours from Harrisburg)
Posts: 1,595
Blog Entries: 14
Thanks: 59
Thanked 34 Times in 28 Posts
Default Re: hill stream paludarium

wow
beautiful and interesting
just amazing

what is that green frog, 6th from the bottom?
Reply With Quote
  #8 (permalink)
Old 01-24-2010, 03:18 PM
Reefer420's Avatar
Member

Join Date: Oct 2009
Location: San Diego
Posts: 288
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: hill stream paludarium

beautiful..thats an amazing viv. very clean work.
__________________
Barša
Reply With Quote
  #9 (permalink)
Old 01-24-2010, 03:49 PM
zBrinks's Avatar
Senior Member

Join Date: Jul 2006
Location: Lansing, Michigan
Posts: 6,110
Blog Entries: 2
Thanks: 44
Thanked 333 Times in 212 Posts
Default Re: hill stream paludarium

Quote:
Originally Posted by HunterB View Post

what is that green frog, 6th from the bottom?
I believe that is Hyperolius fusciventris.
__________________
Zach Brinks
www.JoshsFrogs.com
Same day shipping 1(800)691-8178
Reply With Quote
  #10 (permalink)
Old 01-24-2010, 04:20 PM
Geckoguy's Avatar
Member

Join Date: Dec 2008
Location: Pittsburgh, PA
Posts: 484
Thanks: 5
Thanked 2 Times in 2 Posts
Thumbs up Re: hill stream paludarium

Wow I really love this one! The waterfall looks great, the realism of the entire thing flows so nicely.
__________________
"UNLESS someone like you cares a whole awful lot, nothing is going to get better. It's not." -Seuss-
Reply With Quote
  #11 (permalink)
Old 01-24-2010, 05:04 PM
Newt1's Avatar
Member

Join Date: Feb 2007
Location: Oregon WI
Posts: 171
Thanks: 4
Thanked 0 Times in 0 Posts
Default Re: hill stream paludarium

nice job
How long did it take to make
__________________
(Newt1)
D. Azureus
Reply With Quote
  #12 (permalink)
Old 01-24-2010, 05:21 PM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

Thank you all for your kind words!

That is the Hyperolius fusciventris indeed!

I took a few months to figure out how to do it (dec 2007-march 2008) and then a few months to build the structure (up to sept 2008). The interior was done within a few weeks - when the end of projects comes near, I tend to use more hours...

That said, there were week I did absolutely nothing.
Reply With Quote
  #13 (permalink)
Old 01-24-2010, 05:22 PM
Eric Walker's Avatar
Member

Join Date: Aug 2009
Location: Minnesota
Posts: 975
Thanks: 72
Thanked 21 Times in 18 Posts
Default Re: hill stream paludarium

WOW- beautiful I love that green frog
Reply With Quote
  #14 (permalink)
Old 01-24-2010, 05:33 PM
Junior Member

Join Date: Dec 2009
Location: Tampa, FL
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: hill stream paludarium

Stunning. I am SO glad to see a mixed species tank! I wish americans were not so narrow mided on this topic some times. It really would enhance things in my opinion.
DragonSpirit1185 likes this.
Reply With Quote
  #15 (permalink)
Old 01-24-2010, 06:57 PM
Junior Member

Join Date: Jan 2010
Location: Vegas, baby!!!
Posts: 78
Thanks: 43
Thanked 2 Times in 2 Posts
Default Re: hill stream paludarium

excellent set-up!! great pictures documenting the build!! was there a certain particular place in europe that was the inspiration for this? lets see more overseas tanks!!!!
__________________
1.2. Chihuahuas
0.0.0. D. Leucomelas
ya, i got nuthin' yet...soon, though...
Reply With Quote
  #16 (permalink)
Old 01-24-2010, 07:53 PM
nathan's Avatar
Contributing Member

Join Date: Jul 2009
Location: Royal oak Mi
Posts: 1,520
Thanks: 19
Thanked 19 Times in 7 Posts
Default Re: hill stream paludarium

Very nice looking viv
Reply With Quote
  #17 (permalink)
Old 01-24-2010, 10:02 PM
frogfannumero1's Avatar
Member

Join Date: Mar 2009
Location: Indiana
Posts: 107
Thanks: 4
Thanked 5 Times in 4 Posts
Default Re: hill stream paludarium

Very well done vivarium and excellent attention to detail! Two thumbs way up!
Reply With Quote
  #18 (permalink)
Old 01-24-2010, 10:10 PM
TWI/ASN

Join Date: Jan 2007
Location: Durham, NH
Posts: 471
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: hill stream paludarium

Very nice! I am always impressed by the custom vivs I see from our Euro friends.
__________________
Join the New England Frog Group mailing list!

Dan
Reply With Quote
  #19 (permalink)
Old 01-24-2010, 10:34 PM
Lance's Avatar
Member

Join Date: Sep 2008
Location: Alberta Canada
Posts: 257
Thanks: 8
Thanked 18 Times in 12 Posts
Default Re: hill stream paludarium

Wow this has to be one of the best thought out tanks ive ever seen! I have to commend you on your work. Great job!
Reply With Quote
  #20 (permalink)
Old 01-24-2010, 11:27 PM
eos's Avatar
eos eos is offline
Senior Member

Join Date: Dec 2008
Location: NJ/NYC
Posts: 2,877
Thanks: 101
Thanked 89 Times in 85 Posts
Default Re: hill stream paludarium

ZING! I want that in my house! Nice work!
Reply With Quote
  #21 (permalink)
Old 01-25-2010, 02:19 AM
Member

Join Date: Feb 2009
Posts: 201
Thanks: 4
Thanked 2 Times in 1 Post
Default Re: hill stream paludarium

sweet. It's interesting that you didn't make the sides and back, along the top, as one piece with the bottom. What made you decide to glue those on?
Reply With Quote
  #22 (permalink)
Old 01-25-2010, 07:43 AM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

Thank you all for your kind words!

For me the building of this viv was a way to test the viability of the entire idea of a hill stream paludarium using pond pumps. The answer is now: it is a good idea and it works!

It actually works so nice that I am now planning to build a new, larger one which will replace the present one.

I┤ll post the work in progress in another thread.


b:
Reply With Quote
  #23 (permalink)
Old 01-25-2010, 07:45 AM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

Quote:
Originally Posted by mellowvision View Post
sweet. It's interesting that you didn't make the sides and back, along the top, as one piece with the bottom. What made you decide to glue those on?
That was to get the pieces of glass safe in the room (upstairs). 150x165cm is just too large to handle in our house.
Reply With Quote
  #24 (permalink)
Old 01-27-2010, 06:37 PM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

Quote:
Originally Posted by waterbed fred View Post
excellent set-up!! great pictures documenting the build!! was there a certain particular place in europe that was the inspiration for this? lets see more overseas tanks!!!!

I have a real passion for Scotland (just like a rainforest, just a bit colder ). In the Kilninver area in Argyll I made a lot of photographs for inspiration and I took the pieces of rock for the tank (as much as I could get in the car, through my wifes security inspection ).

A lot of the photographs on my site show the way I see the smaller landscapes, which are always inspiring for working in the tank.
Reply With Quote
  #25 (permalink)
Old 01-27-2010, 07:08 PM
MonkeyFrogMan28's Avatar
Member

Join Date: Feb 2009
Posts: 178
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: hill stream paludarium

I think this thread should be used as a example on how to properly mix. Its perfect. When you have a tank this big you can try to mix. I think this was done 100% in the correct means of mixing. Awesome! Just Awesome !!! Job well done.
Reply With Quote
  #26 (permalink)
Old 01-28-2010, 09:01 AM
Junior Member

Join Date: Jan 2009
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: hill stream paludarium

Love the tank Wim

Allready saw it on the Dutch (im dutch too) forum a while ago, but i didn't saw the construction of it.
Keep up the good work, and maybe we will get to meet sometimes.
I'm starting with my palu so i can get all the info i can get

greetings from Vincent @ Arnhem
Reply With Quote
  #27 (permalink)
Old 01-28-2010, 10:57 AM
Leidig's Avatar
Dedicated Supporter

Join Date: Apr 2009
Location: South Jordan, UT
Posts: 235
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: hill stream paludarium

I have to say your are a master designer/builder of vivs. Your threads are so detailed and well done. Thank you for sharing your vivs with us.
__________________
0.2.0 D. tinctorius (azureus)

Stay positive and love your life. - Nick Hexum
Reply With Quote
  #28 (permalink)
Old 01-28-2010, 02:10 PM
raimeiken's Avatar
Member

Join Date: Dec 2006
Posts: 496
Thanks: 15
Thanked 21 Times in 16 Posts
Default Re: hill stream paludarium

Awesome tank!

do you know the name of this plant I circled?

__________________
.:40gal Viv:.
.:Rotating Viv:.
~John
Reply With Quote
  #29 (permalink)
Old 01-28-2010, 03:37 PM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

hi John, thanks for the compliments. It is a Mimosa pudica (it blooms very nicely with purple flower 'globes' - just search for Mimosa in wikipedia). This lovely plant folds its leaves when touched.



hi Vincent, feel free to contact me and have a look in real life!


thank you all for your encouraging words!
Reply With Quote
The Following User Says Thank You to wimvanvelzen For This Useful Post:
DragonSpirit1185 (12-26-2011)
  #30 (permalink)
Old 01-28-2010, 04:22 PM
raimeiken's Avatar
Member

Join Date: Dec 2006
Posts: 496
Thanks: 15
Thanked 21 Times in 16 Posts
Default Re: hill stream paludarium

awesome! thanks for the name of that plant. I just bought some seeds. Hopefully I can grow them successfully in my viv
__________________
.:40gal Viv:.
.:Rotating Viv:.
~John
Reply With Quote
  #31 (permalink)
Old 01-28-2010, 04:35 PM
Member

Join Date: Apr 2009
Location: Boston, MA
Posts: 111
Thanks: 1
Thanked 0 Times in 0 Posts
Default Re: hill stream paludarium

WOW! Stunning, easily one of my favorite vivs. thanks for sharing
Reply With Quote
  #32 (permalink)
Old 01-28-2010, 06:25 PM
frogparty's Avatar
Senior Member

Join Date: Dec 2007
Location: carlsbad, california
Posts: 8,328
Blog Entries: 1
Thanks: 256
Thanked 429 Times in 370 Posts
Default Re: hill stream paludarium

I see those mimosas for sale all the time. Might have to try one. Aernt they an annual?



__________________
I like frogs with racing stripes
Reply With Quote
  #33 (permalink)
Old 01-28-2010, 08:43 PM
fleshfrombone's Avatar
Senior Member

Join Date: Jun 2008
Posts: 2,605
Thanks: 61
Thanked 124 Times in 75 Posts
Default Re: hill stream paludarium

You Europeans.... Always knocking it right out of the park. Great viv.
__________________
Ranitomeya Adelphobates Ameeraga Hyloxalus Dendrobates Oophaga
Μολὼν λαβέ
[X]Gun Owner [ ]Victim
Reply With Quote
  #34 (permalink)
Old 01-28-2010, 09:27 PM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

Quote:
Originally Posted by frogparty View Post
I see those mimosas for sale all the time. Might have to try one. Aernt they an annual?
In my viv I have them since October 2008, so not really annual. But even then there is plenty of seed (it is I believe self-fertile). Great looking plant!
Reply With Quote
  #35 (permalink)
Old 01-30-2010, 06:11 AM
Member

Join Date: Nov 2007
Location: Chicopee. MA. USA
Posts: 541
Thanks: 0
Thanked 1 Time in 1 Post
Post Re: hill stream paludarium

Your work is outstanding. I love your naturalistic take on your setups, and the amount of care and planning taken into play.

Agian, outstanding. Feel free to visit my site in my signature and check out some of my work as well!
Reply With Quote
  #36 (permalink)
Old 01-30-2010, 09:05 AM
Member

Join Date: Jan 2010
Location: Portland Oregon
Posts: 399
Thanks: 20
Thanked 9 Times in 7 Posts
Default Re: hill stream paludarium

Love the tank what kind of Lizard is that
Reply With Quote
  #37 (permalink)
Old 01-30-2010, 02:50 PM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

hi Nick, thanks for your comments! There seem to be some connection problems to your site at the moment, but I┤ll check later.

@Vivbuilder - that is a Lygodactylus picturatus. They really need dry and warm parts in the viv, so most PDF tanks won┤t do. But they are lovely animals.
Reply With Quote
The Following User Says Thank You to wimvanvelzen For This Useful Post:
DragonSpirit1185 (12-26-2011)
  #38 (permalink)
Old 03-23-2010, 05:10 PM
Junior Member

Join Date: Jan 2010
Location: Pittsburgh
Posts: 62
Thanks: 0
Thanked 2 Times in 1 Post
Default Re: hill stream paludarium

What is the brownish frog above the Hyperolius fusciventris?
Reply With Quote
  #39 (permalink)
Old 03-23-2010, 08:42 PM
dendro-dude's Avatar
Member

Join Date: Jan 2010
Location: Atlanta, Ga
Posts: 333
Thanks: 0
Thanked 1 Time in 1 Post
Default Re: hill stream paludarium

Awesome tank! lovely inhabitants

It's a fantastic tank, have you mixed species before?
__________________
1.1.0 D. Tinctorius 'powder blue' (40Breeder tank)
0.0.1 D. Tinctorius Azureus(10L tank)
Chris S.
Reply With Quote
  #40 (permalink)
Old 03-23-2010, 10:55 PM
wimvanvelzen's Avatar
Member

Join Date: Nov 2008
Location: the Netherlands
Posts: 326
Thanks: 15
Thanked 46 Times in 25 Posts
Default Re: hill stream paludarium

Quote:
Originally Posted by Rski View Post
What is the brownish frog above the Hyperolius fusciventris?
In the series you see a picture of the Mannophryne, than the H. azureiventris and then some juveline Hyperolius and a mature one.
Reply With Quote
Reply

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Hill Billy Deluxe Detrick105 The Lounge 14 04-30-2007 03:56 PM
Ancon Hill mydumname The Lounge 0 10-21-2005 10:47 PM

Powered by vBadvanced CMPS v3.2.3

All times are GMT. The time now is 08:33 AM.


Powered by vBulletin® Version 3.8.8
Copyright ©2000 - 2020, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
vBulletin Security provided by vBSecurity v2.2.2 (Pro) - vBulletin Mods & Addons Copyright © 2020 DragonByte Technologies Ltd.
